Bench- and table scales - Industrial scales

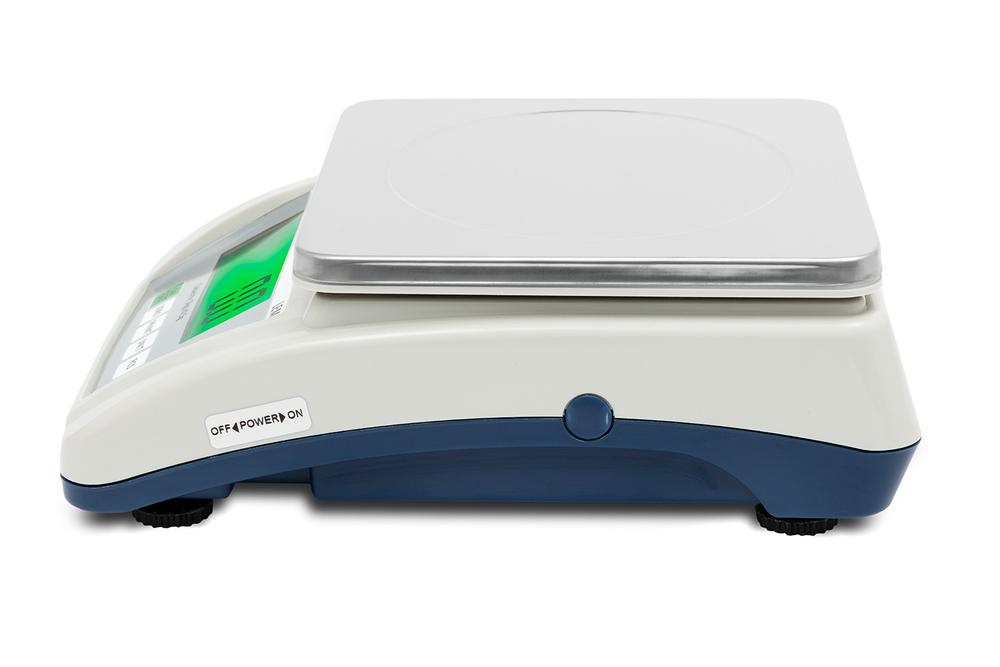

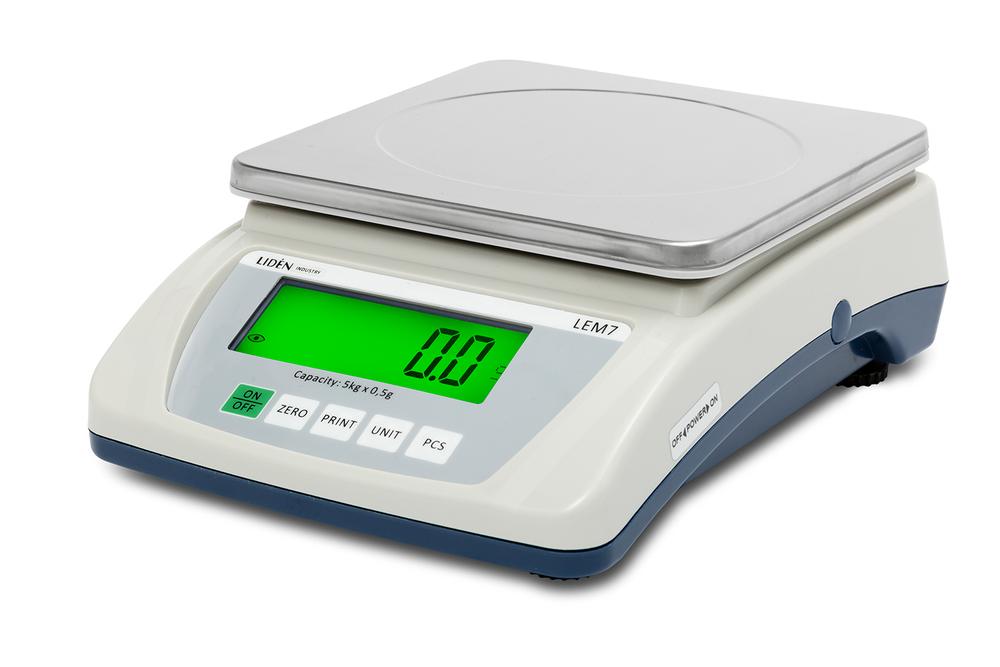

Bench- and table scale LEM7
High-resolution benchscale for general weighing in dry environments. Battery function, stainless steel platform and several capacities.
Functions
Battery
CE-approval
Count function
External adjustment
LCD-display
Load sensor
Mains adaptor
Plastic
RS-232
Units
Warranty 1 year
Downloads
Broschyr (7.2 MB)
DownloadUser Manual (310.9 KB)

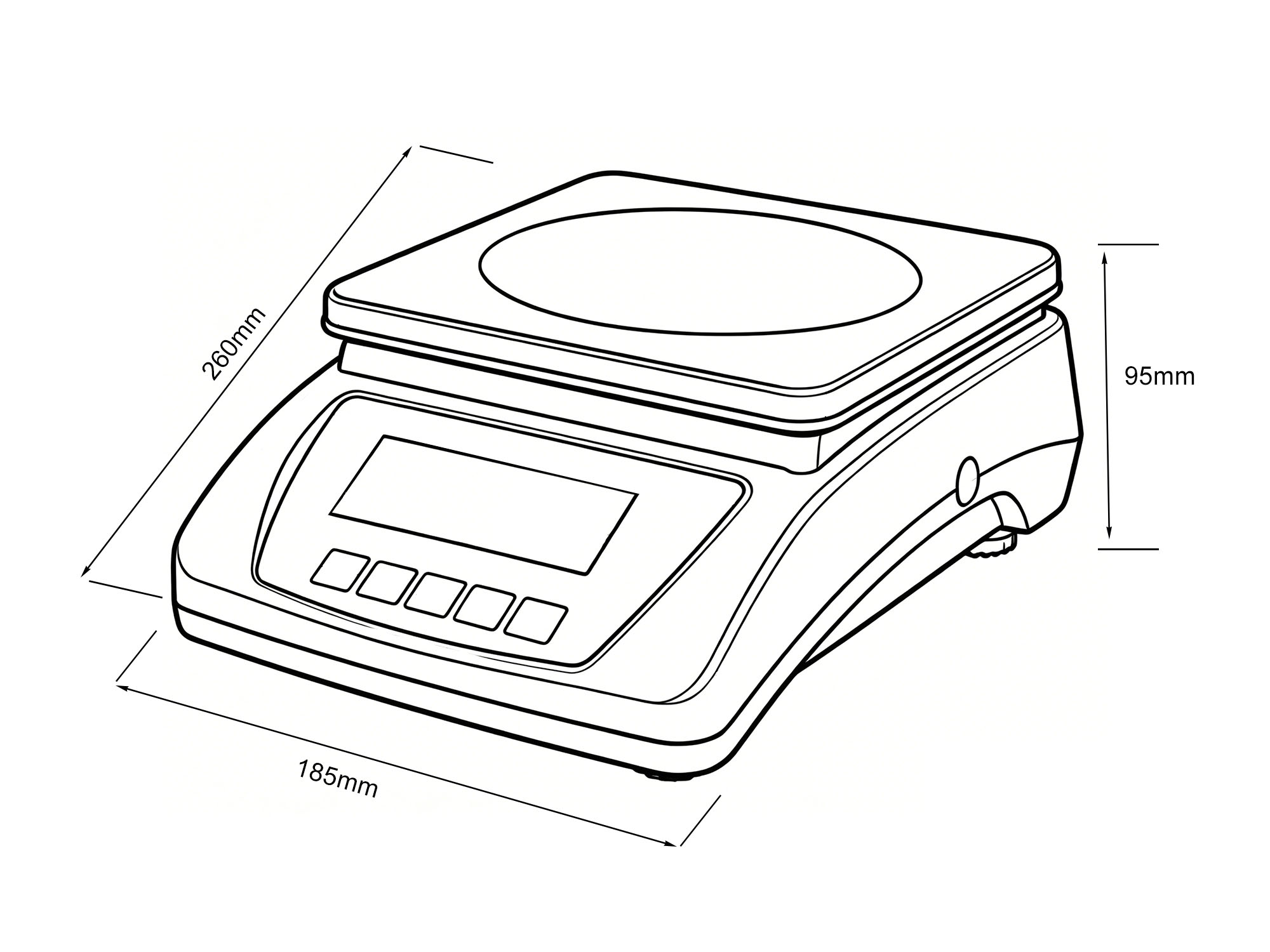

DownloadDrawing and Dimension (265.9 KB)
DownloadTechnical specification
 | |
LEM7-1,2 | |
| Capacity | 1200 g |
|---|---|
| Readout | 0,1 g |
| Accuracy | +/- 0,1 g |
| Platform | 180 x 170 mm |
| Stainless | |
| Product size | 180 x 170 x 95 mm |
| Weight scale | 1,5 kg |
| Display | 20 mm LCD-display with backlight |
| Weighing technology | Strain gauge |
| External adjustment | |
| |
LEM7-2,5 | |
| Capacity | 2500 |
|---|---|
| Readout | 0,2 g |
| Accuracy | +/- 0,2 g |
| Platform | 180 x 170 mm |
| Stainless | |
| Product size | 180 x 170 x 95 mm |
| Weight scale | 1,5 kg |
| Display | 20 mm LCD-display with backlight |
| Weighing technology | Strain gauge |
| External adjustment | |
| |
LEM7-5 | |
| Capacity | 5 kg |
|---|---|
| Readout | 0,5 g |
| Accuracy | +/- 0,5 g |
| Platform | 180 x 170 mm |
| Stainless | |
| Product size | 180 x 170 x 95 mm |
| Weight scale | 1,5 kg |
| Display | 20 mm LCD-display with backlight |
| Weighing technology | Strain gauge |
| External adjustment | |
| |
LEM7-10 | |
| Capacity | 10 kg |
|---|---|
| Readout | 1 g |
| Accuracy | +/- 1 g |
| Platform | 180 x 170 mm |
| Stainless | |
| Product size | 180 x 170 x 95 mm |
| Weight scale | 1,5 kg |
| Display | 20 mm LCD-display with backlight |
| Weighing technology | Strain gauge |
| External adjustment | |
